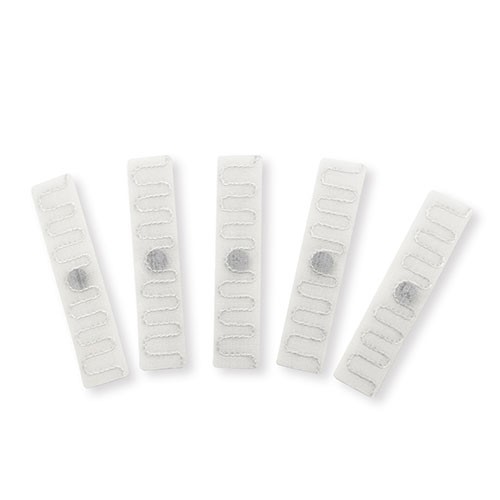

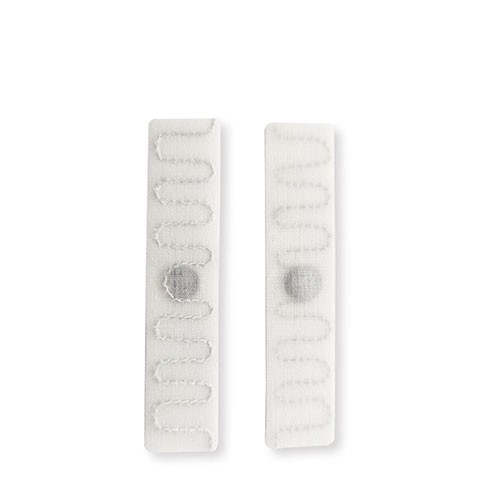

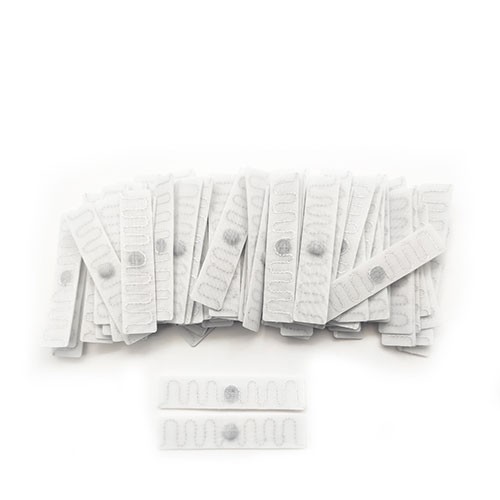

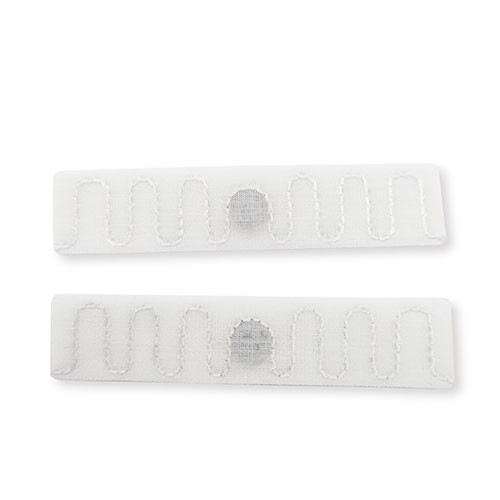

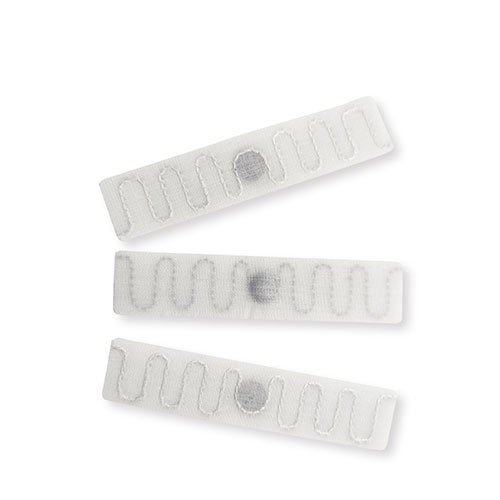

RFID Атекстильтә ӡәӡәарҭа атег

RFID Текстильтә ӡәӡәарҭа атег еиқәнархоит Аиндустриалтә ӡәӡәара 200 times.In индустриалтәи амедицинатәи аӡәӡәара аҭагылазаашьаҿы, уи 60Bar атмосфератә қәыӷәӷәара ахгара алшоит, аҭышәынтәалареи агәрагара змоу аусура.

Аалыҵ апликациа:
* Аиндустриалтә ӡәӡәара;
* Аусзуҩцәеи ашколтә униформақәеи рнапхгара;
* Ахәышәтәратә маҭәа анапхгара;
* Арратә маҭәа анапхгара;
* Аперсоналтә патруль анапхгара;
* Амаҭәаҟаҵарҭақәа рҭыжьырҭа анапхгара.

RF Specifications
RF Air Protocol	EPC Global Class 1 Gen2 ISO18000-6C
Operating Frequency	UHF 866-868 MHz (ETSI) /UHF 902-928 MHz (FCC)
Environment Compatibility	Optimized in Air
Data Retention Period	50 Years
Read Range	Up to 5.5 m (off metal)
Polarization	Linear
IC Type	Impinj R6-P
Memory Configuration	EPC 128bit TID 96bit User 32bit

Mechanical Sepcifications
Tag Materials	Metal Wire
Surface Materials	Textile
Dimensions (mm)	15701.5 mm
Weight (g)	0.7g
Attachment	L-T7015S: Sew in the hem or woven label L-T7015P: Heat-sealing at 215℃@15 sec & 4 bars
Color	White

Environmetal Sepcifications
Operating Temperature	-30°C to +85°C
Ambient Temperature	-30°C to +100°C
Mechanical Resistance	60 bars
Chemical Resistance	Normal common chemicals in the washing processes
Heat Resistance	Washing: 90℃, 15 mins, 200 cycles
	Pre-drying: 180℃, 30 mins
	Ironing: 180℃, 10 sec, 200 cycles
	Sterilization: 135℃, 20 mins
IP Classfication	IP68
Shock and Vibration	MIL STD 810-F
Certifications	CE approved RoHS approved ATEX/IECEx certified
Warranty	2 year or 200 times of washing
